How to select the Plate Rolling Machine ?
This guide helps you understand the key factors to consider before selecting a plate rolling machine that matches your production needs.
How to Identify the Right Plate Rolling for Your Needs?
Right selection of Plate Rolling Machine for your need is depending up on the various factors like, your application, your production requirements and your budget.

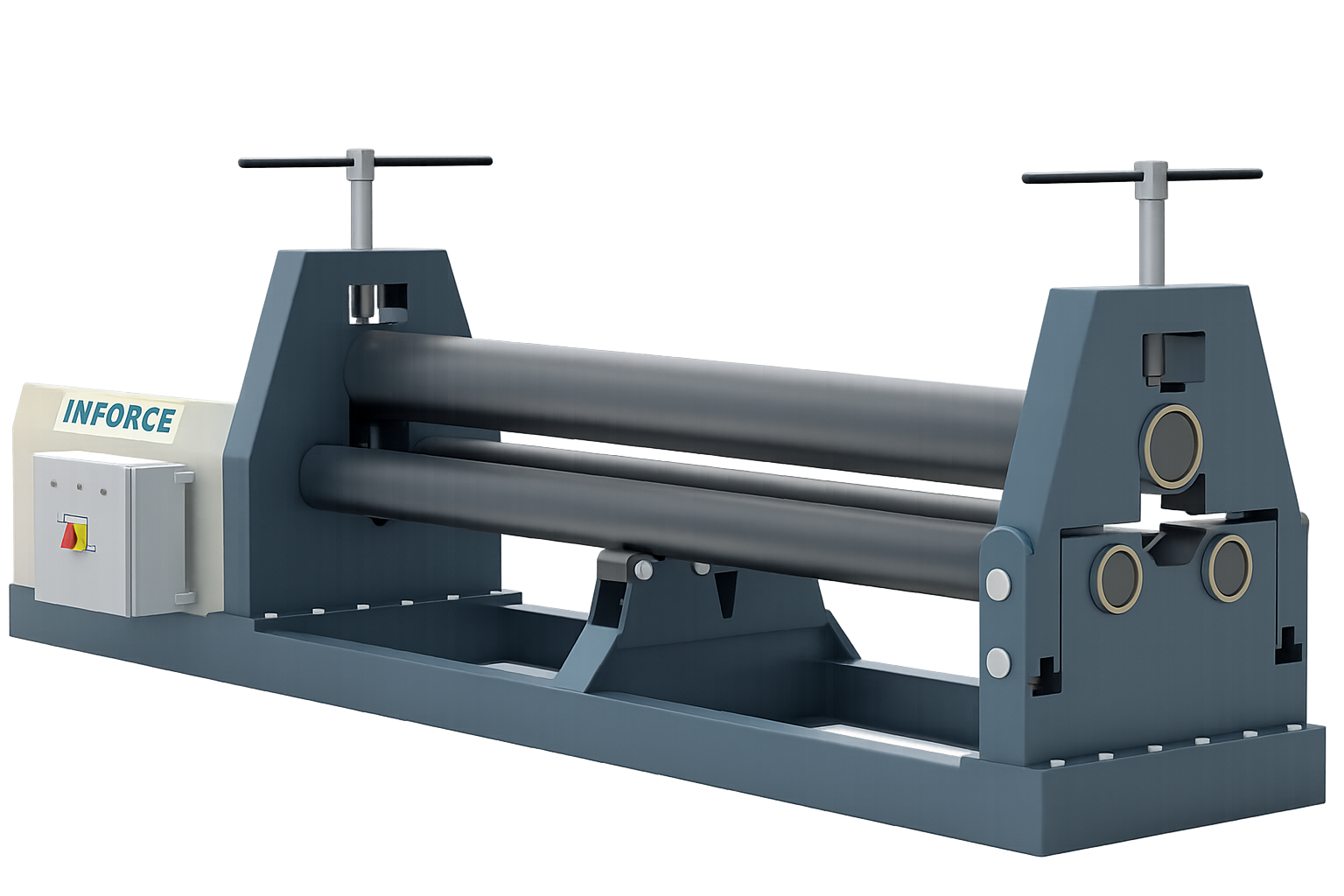

Mechanical Screw Type
• Basic Model with Basic Features
• Top Roll Movement Manual
• Without Hydraulic System
• Roll Movement Measured Manually
• Pre Bending (Edge Bending) Not Possible. So 6”-8” Part at Both Ends are straights
• Both side Flat Ends to be Cut After Rolling
• Extra Material is Required to Cut the Both Ends
• Low Production Rate with Material Wastage
• Making of Different Kind of Shape is Very Difficult

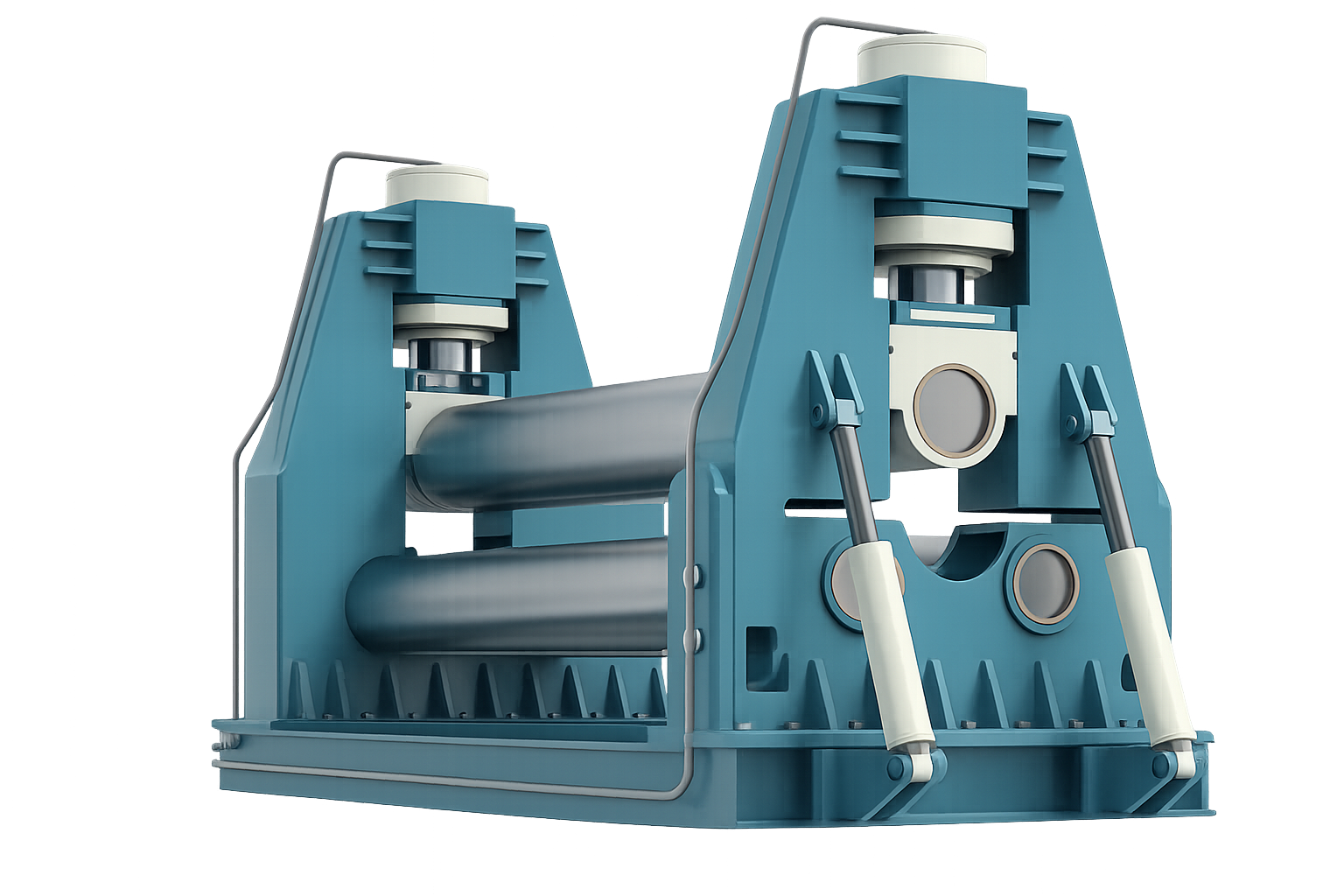

Semi Hydraulic Without Pre Pinch (Hydro Mechanical)
• Economy Model with Additional Features
• Top Roll movement by Push Button with Hydraulic System
• 2+1 Hydraulic Cylinders and Power Pack
• Roll Movement Measured Manually
• Pre Bending (Edge Bending) Not Possible. So 6″-8″ Part at Both Ends are straight.
• Both side Flat ends to be cut after rolling
• Extra Material is required to cut the both ends
• Medium Production rate with some material wastage
• Making of Different Kind of shape is difficult.
Fully Hydraulic with Pre Pinch and NC (3 Roller)
• High Range Model with Pre Pinch & NC
• Bottom 2 Rolls movement by Push Button with Hydraulic System
• 4+1 Hydraulic Cylinders and Power Pack
• Roll Movement checked and controlled from panel desk
• Both the ends are bent within the machine easily to get the round shape
• Both ends are bent in the machine (Pre Bending)
• No extra material is required, so no material wastage or scrap
• Better production rate with no material wastage
• With some skills, different kinds of shapes are possible
Fully Hydraulic with Pre Pinch and NC (4 Roller)
• High Range Model with Pre Pinch & NC
• Bottom 3 Rolls movement by Push Button with Hydraulic System
• 6+1 Hydraulic Cylinders and Power Pack
• Roll Movement checked and controlled from panel desk
• Both the ends are bent within the machine easily to get the round shape
• Both ends are bent in the machine (Pre Bending)
• No extra material is required, so no material wastage or scrap
• Highest production rate with no material wastage
• Any kind of shapes are possible with little practice
